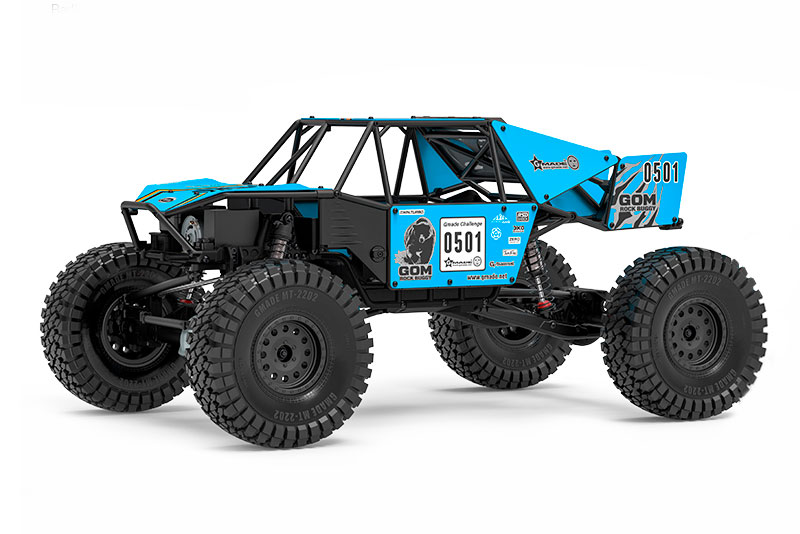

GMADE 1/10 GOM ROCK BUGGY RTR KIT
The GOM (translates to "Bear") features a lightweight, extremely rigid tube chassis that not only looks extremely scale, but protects against impact. The steering servo is mounted to the chassis, and bump steer has been minimized to provide the best possible steering performance. The dustproof receiver box and easy access battery door provide plenty of space for your components. The GOM's front weight balance is designed to increase traction to the front wheels, improving climbing on steep angles and minimizing roll-overs.
Other notable features include a scale looking transmission and transfer case with a 2 speed transmission, awesome XD Aeration shocks, standard 2.2 size wheels. The Gmade GOM is destined to become a standard in the world of rock crawlers.
This version of the Gmade GOM is RTR and is supplied with a 2.4Ghz Radio control system, 35turn Brushed motor, Brushed waterproof electronic speed controller and a High torque metal geared servo, it just requires a 2S Li-Po or 7.2v Ni-MH battery, Compatible charger & 4 x AA batteries for completion.
GOM Tube Chassis
The tube chassis is lightweight and extremely rigid. The three-dimensionally connected frame structure effectively protects the internals from external impact. The GOM's chassis is designed to carry more of the electrics up front so that the weight balance helps to create traction for steep climbs.
GOM Drive Train
The GA60 axles are structurally reinforced with an axle truss to not only reduce the risk of breakage, but to give a great scale appearance. They feature Hi Steer Zero Ackerman Knuckle Arms for improved clearance and a tight turning radius.
GOM Transmission and Case
The 2 speed transmission (optional Part number: GM30100), and transfer case with built in dig function, are designed to enhance the scale appearance of the vehicle. The 1st gear is for hardcore rock climbing and the 2nd gear is for hill climbing or high speed driving. Drivetrain efficiency has been improved by lowering the transfer case and reducing the driveline angle. The dual pad slipper holds the spur gear firmly and evenly, making precision settings easy to achieve.
GOM XD Aeration Shock Absorber
Suspension utilizes 103mm aeration coil-over shocks for smooth driving on rough surfaces. Shock bodies are CNC machined, and 3.5mm shock shafts provide high durability. Rebound can be adjusted without disassembling the shock by simply using the aeration shock cap screw. Dual shocks can be added at a later date for the ultimate suspension setup for rough terrain.
Gmade GOM RTR Rock Buggy Features:
2 Speed Transmission (optional Part number: GM30100)
DIG System (optional Part number: GM30100)
Front Weight Balance
4 Wheel Drive
Chassis Mount Servo System w/ Panhard Bar
Full Tube Frame Chassis
Dustproof Receiver Box
Forward Easy Access Battery Door
Skid Plate
Rock Transfer Case
Dual Slipper Clutch
Easy Adjust Motor Mount
GA60 Axle
HI STEER Zero Ackerman Knuckle Arm
Adjustable Castor
Kingpin Angle
Panhard Bar Axle Mount
Rear Dual Shock Mount
XD Aeration 103mm Shock Absorber
2.2 inch Wheel & Tyres
Interior Cockpit
T21A 2.4Ghz Transmitter and R3A Receiver
E042A Brushed Waterproof ESC
35turn Brushed motor
S12321 High torque metal gear servo
Spec Check:
Width: 318mm
Height: 248mm
Length: 523mm
Wheelbase: 380mm
Ground Clearance: 88mm
Weight (No Electronics): 2.3kg
2.2 inch M/T Off-Road Tyre and GT03 Wheel
The GOM comes kitted out with Gmade MT-2202 Tyres on GT03 2.2 inch wheels. The super soft tyres provide a high level of traction when crawling but are also suitable for general off-roading.
Tyre Spec:
Tyre Height: 143mm
Tyre Width: 52mm
Inner Diameter: 56mm (2.2")
Wheel Spec:
Wheel Diameter: 55.8mm (2.2")
Wheel Width: 36mm
Wheel Hex Mount: 12mm
Wheel Offset: 4.4mm Negative offset
Please Note: This model is sold in RTR (Ready-to-run) form but requires a 2S Li-Po or 7.2v Ni-MH battery, Compatible charger & 4 x AA batteries for completion.
1:10 Gmade
4WD SCALE Crawler Kit
Bausatz ohne Elektronik

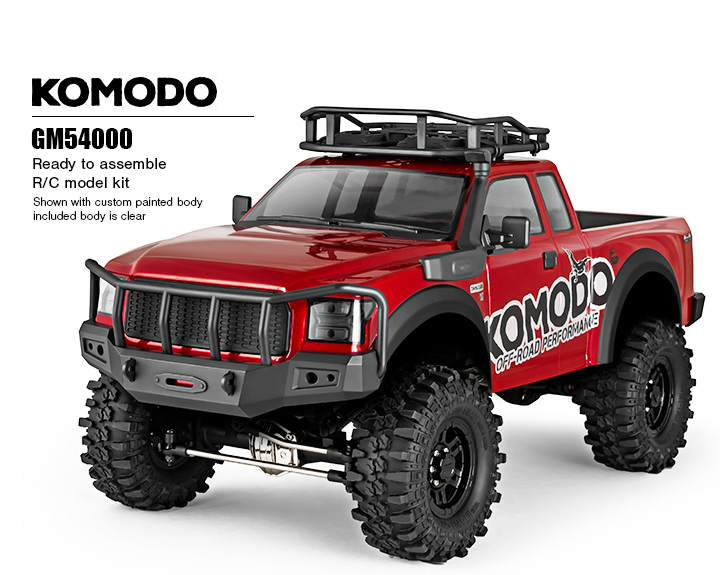

GMADE 1/10 GS01 KOMODO TRUCK SCALE CRAWLER KITThe Komodo is designed for scale performance and great looks with or without a body. The GS01 Chassis with a new 4-Link suspension systems and steel ladder C channel frame makes for a great rig and scale finish. The steel has been nickel plated to resist corrosion, and looks great too! Next add a dust proof receiver box that has been moulded to look like a real engine cover. The receiver box also provides a spot to mount your ESC to keep your rig looking clean.GMade Komodo KitTo help push performance to the max, an adjustable battery tray offers the lowest possible centre of gravity, while allowing for the use of a variety of packs. The centre skid plate is designed to run smoothly over any surface without getting stuck.The 4-Link suspension has been designed to reduce torque twisting and give a smoother overall movement feel and along with the Gmade G-Transition shock absorbers helps to get the power to the axles. A dust proof transmission is used which features a metal-motor mount to keep everything precise and secure and running cool. The power is then transmitted to the axles with universal shafts and to ensure there is no loss of power every rolling component uses ball bearings. Where is all this power going? Out to the MT-1903 off-road tyres mated to NR02 1.9 inch beadlock wheels. This tyre and wheel combination provides excellent traction in almost any environment.As we've come to expect from Gmade, the Komodo is packed with scale features. The 1.5mm lexan shell, based on a standard pickup truck, is supplied clear for you to add your own paint scheme along with a decal sheet for extra styling. The shell can be detailed with the included plastic parts; a front grille, mirrors, light buckets, wiper grille, door handles and heavy duty front and rear bumpers. Gmade have also added extra value in the accessories department. The Komodo comes packing a roof rack, bumper, snorkel, sand ladder, hooks and a shovel.This really is their most realistic model to date!GS01 ChassisThe GS01 ladder frame is designed to look like the chassis of a real car and is made of high strength steel. The C-channel side rail offers added stability and is bolted with cross members to aid against twisting or warping. The steel parts are also nickel plated for a glossy look and are resistant to corrosion.GS01 Drive TrainThe one-piece graphite axle housing is made of high strength plastic for maximum durability and easy maintenance. Inside, both front and rear axles have solid differential gears to provide a stronger driving force in any driving conditions. The gears are protected by a glossy metal cover for added scale realism. GS01 SuspensionThe G-Transition aluminium shock absorbers are oil filled with an internal spring providing a smooth shock action even over the roughest terrain, along with the 4-Link suspension system this beast has superior performance and delicate control over any terrain thrown at it. GS01 Adjustable Battery PlateThe GS01 battery plate is designed to offer the lowest centre of gravity to the chassis to enable a stable driving motion. It is also adjustable, allowing different batteries to be used while still being held securely.Adjustable Battery PlateGmade Komodo Features: GS01 4-link suspension chassis Steel ladder frame Adjustable battery plate Dust proof receiver box Skid plate One-piece graphite axle housing Metal differential cover Solid differential gear Dust proof transmission NR02 1.9" beadlock wheel MT-1903 1.9" off-road tyre Clear lexan pickup truck body Bodyshell accessories and decal sheetSpec Check: Width: 236mm Height: 247mm Height (without roof rack): 215mm Length: 506mm Wheel Base: 287mm Ground Clearance: 65mm Weight (no electric): 1.9kgKomodo Dimensions1.9 inch M/T Off-Road Tyre and NR02 WheelMT1903 Tyre SizeNR02 WheelTyre Spec: Tyre Height: 109mm Tyre Width: 40mm Inner Diameter: 48mmWheel Spec: Wheel Diameter: 48mm Wheel Width: 23mm Wheel Hex Mount: 12mm Wheel Offset: 1mm Negative offset PLEASE NOTE: This vehicle is sold in kit format and requires the following for completion: Radio control system, motor, ESC, servo, 7.2v battery and charger and paint.
